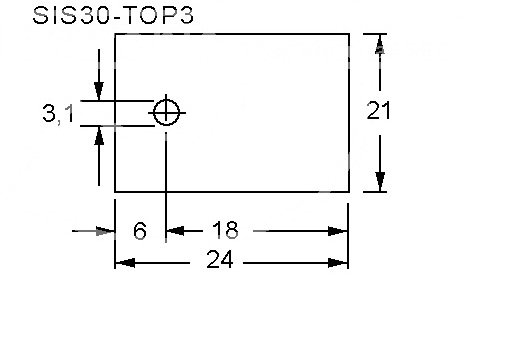

TOP3 Silikon İzolator (SIS30-TOP3)
7,02 TL
Kategori
Dorukan Stok No
DRK-7342
Fiyat
0,16 EUR + KDV
Havale
6,81 TL
(%3,00 havale indirimi)
| Features |
| • High thermal conductance • Mechanical stability due to reinforced glass fiber • Very flexible • No heat conductor pastes necessary • Flame retardant in accordance with UL94V-0 |
 |
| Technical
Specifications |
|
|
| Material: |
Silicon with Reinforced Glass Fiber |
| Filling: |
Heat Conductive Ceramic |
| Material Thickness: |
0,3mm ±0,05 |
| Dielectric Voltage1): |
7000V AC |
| Flammability Class: |
UL94V-0 |
| Thermal Conductance: |
1,9W/mK |
| Thermal Resistance2): |
0,45°C/W |
| Operating Temperature: |
-60...+200°C |
1) Voltage Ramp
1000V/s, 2)at Approx. 1,3MPa |
|
