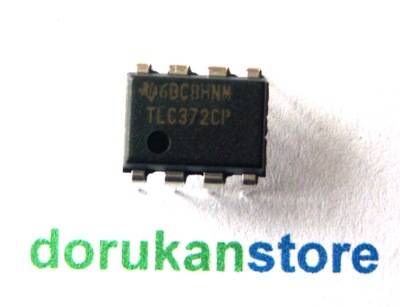

TLC372
126,61 TL
Kategori
Marka
Dorukan Stok No
DRK-1537-2
Fiyat
3,00 USD + KDV
Havale
122,81 TL
(%3,00 havale indirimi)
Dual General Purpose LinCMOS(TM) Differential Comparator
Description
This device is fabricated using LinCMOS
technology and consists of two independent
voltage comparators, each designed to operate
from a single power supply. Operation from dual
supplies is also possible if the difference between
the two supplies is 2 V to 18 V. Each device
features extremely high input impedance
(typically greater than 1012 Ω), allowing direct
interfacing with high-impedance sources. The
outputs are n-channel open-drain configurations
and can be connected to achieve positive-logic
wired-AND relationships.
Features
• Single or Dual-Supply Operation
• Wide Range of Supply Voltages 2 V to 18 V
• Low Supply Current Drain 150 μA Typ at 5 V
• Fast Response Time . . . 200 ns Typ for TTL-Level Input Step
• Built-in ESD Protection
• High Input Impedance . . . 1012 Ω Typ
• Extremely Low Input Bias Current 5 pA Typ
• Ultrastable Low Input Offset Voltage
• Input Offset Voltage Change at Worst-Case
Input Conditions Typically 0.23 μV/Month,
Including the First 30 Days
• Common-Mode Input Voltage Range Includes Ground
• Output Compatible With TTL, MOS, and CMOS
• Pin-Compatible With LM393
• Operating Temp. : 0°C to 70°C
• Package : DIP8
This device is fabricated using LinCMOS
technology and consists of two independent
voltage comparators, each designed to operate
from a single power supply. Operation from dual
supplies is also possible if the difference between
the two supplies is 2 V to 18 V. Each device
features extremely high input impedance
(typically greater than 1012 Ω), allowing direct
interfacing with high-impedance sources. The
outputs are n-channel open-drain configurations
and can be connected to achieve positive-logic
wired-AND relationships.
Features
• Single or Dual-Supply Operation
• Wide Range of Supply Voltages 2 V to 18 V
• Low Supply Current Drain 150 μA Typ at 5 V
• Fast Response Time . . . 200 ns Typ for TTL-Level Input Step
• Built-in ESD Protection
• High Input Impedance . . . 1012 Ω Typ
• Extremely Low Input Bias Current 5 pA Typ
• Ultrastable Low Input Offset Voltage
• Input Offset Voltage Change at Worst-Case
Input Conditions Typically 0.23 μV/Month,
Including the First 30 Days
• Common-Mode Input Voltage Range Includes Ground
• Output Compatible With TTL, MOS, and CMOS
• Pin-Compatible With LM393
• Operating Temp. : 0°C to 70°C
• Package : DIP8
