TDA02H0SB1R
41,98 TL
Kategori
Marka
Dorukan Stok No
LNZACEXZ
Fiyat
1,00 USD + KDV
Havale
40,72 TL
(%3,00 havale indirimi)

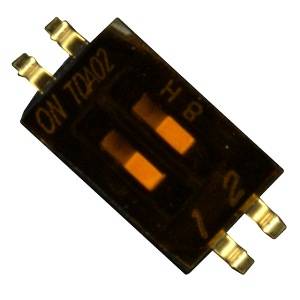

Ultra-miniature Surface Mount Half-pitch DIP Switches
Specifications
SWITCH FUNCTION: SPST – 2 positions.
CONTACT RATING:
24 V DC, 25 mA (switching).
50 V DC, 100 mA (steady state).
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles.
CONTACT RESISTANCE: 100 milliohms max.
INSULATION RESISTANCE: 100 megohms @ 100 V DC min.
DIELECTRIC STRENGTH: 300 V AC min.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING TEMPERATURE: -40°C to 85°C.
OPERATING FORCE: 4,9N max.
