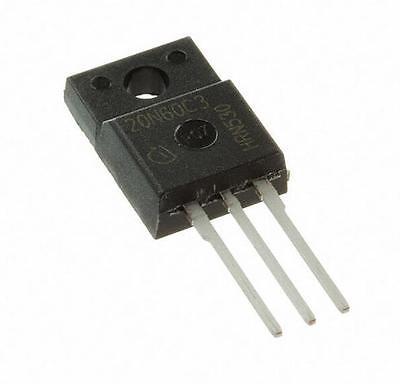

SPA20N60C3 RoHS
147,71 TL
Kategori
Marka
Dorukan Stok No
DRK-1503-7
Fiyat
3,50 USD + KDV
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-220FP-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 600 V
Id - Continuous Drain Current: 20.7 A
Rds On - Drain-Source Resistance: 190 mOhms
Vgs th - Gate-Source Threshold Voltage: 2.1 V
Vgs - Gate-Source Voltage: 10 V
Qg - Gate Charge: 87 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Configuration: Single
Pd - Power Dissipation: 34.5 W
Channel Mode: Enhancement
Tradename: CoolMOS
Packaging: Tube
Height: 16.15 mm
Length: 10.65 mm
Series: CoolMOS C3
Transistor Type: 1 N-Channel
Width: 4.85 mm
Brand: Infineon Technologies
Fall Time: 4.5 ns
Rise Time: 5 ns
Factory Pack Quantity: 500
Typical Turn-Off Delay Time: 67 ns
Typical Turn-On Delay Time: 10 ns
Part # Aliases: SP000216354 SPA20N60C3XKSA1 SPA2N6C3XK
