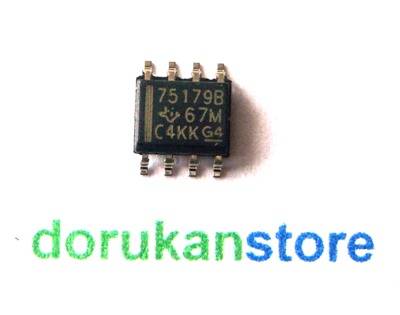

SN75179 SMD ( SN75179BDR RoHS)
84,30 TL
Kategori
Marka
Dorukan Stok No
drk-3a1-458
Fiyat
2,00 USD + KDV
Havale
81,77 TL
(%3,00 havale indirimi)
RS-485 Interface Diff. Driver/Receiver Pair
RS-485 Interface
. Meets or Exceeds the Requirements of
TIA/EIA-422-B, TIA/EIA-485-A, and ITU
Recommendation V.11
. Bus Voltage Range . . . –7 V to 12 V
. Positive- and Negative-Current Limiting
. Driver Output Capability . . . 60 mA Max
. Driver Thermal-Shutdown Protection
. Receiver Input Impedance . . . 12 kW Min
. Receiver Input Sensitivity . . . ±200 mV
. Receiver Input Hysteresis . . . 50 mV Typ
. Operates From Single 5-V Supply
. Low Power Requirements
TIA/EIA-422-B, TIA/EIA-485-A, and ITU
Recommendation V.11
. Bus Voltage Range . . . –7 V to 12 V
. Positive- and Negative-Current Limiting
. Driver Output Capability . . . 60 mA Max
. Driver Thermal-Shutdown Protection
. Receiver Input Impedance . . . 12 kW Min
. Receiver Input Sensitivity . . . ±200 mV
. Receiver Input Hysteresis . . . 50 mV Typ
. Operates From Single 5-V Supply
. Low Power Requirements
Operating Temperature Range : 0 to +70°C
Package : SO8
