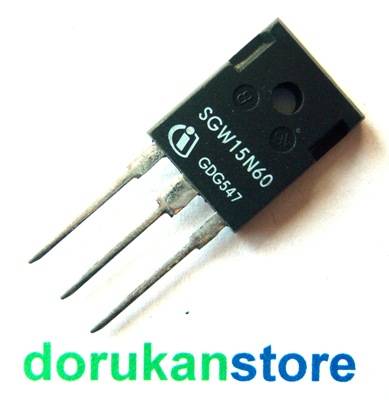

SGW15N60 RoHS
105,07 TL
Kategori
Marka
Dorukan Stok No
DRK-1580-1
Fiyat
2,40 EUR + KDV
Havale
101,92 TL
(%3,00 havale indirimi)
Fast S-IGBT in NPT-technology
Short circuit withstand time – 10 μs
• Designed for:
Motor controls
Inverter
• NPT-Technology for 600V applications offers:
very tight parameter distribution
high ruggedness, temperature stable behaviour
parallel switching capability
• Designed for:
Motor controls
Inverter
• NPT-Technology for 600V applications offers:
very tight parameter distribution
high ruggedness, temperature stable behaviour
parallel switching capability
Collector-to-Emitter Voltage : 600V
VCE(sat) : 2,3V
Continuous Collector Current (IC @ TC = 25°C) : 31A
Continuous Collector Current (IC @ TC = 100°C) : 15A
Maximum Power Dissipation (PD @ TC = 25°C) : 139W
Package : TO-247AC
Bu ürüne ilk yorumu siz yapın!
