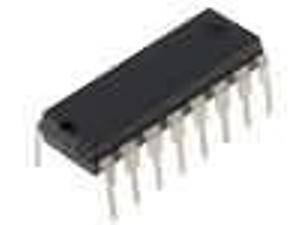

SG3524
28,46 TL
Kategori
Marka
Dorukan Stok No
DRK-1093
Fiyat
0,65 EUR + KDV
Havale
27,60 TL
(%3,00 havale indirimi)
SMPS Control Circuit PWM Regulator
Description
This monolithic integrated circuit contains all the control circuitry
for a regulating power supply inverter or switching regulator.
Included in a 16-pin dual-in-line package is the voltage reference,
error amplifier, oscillator, pulse-width modulator, pulse steering
flip-flop, dual alternating output switches and current-limiting and
shut-down circuitry. This device can be used for switching regulators
of either polarity, transformer-coupled DC-to-DC converters,
transformerless voltage doublers and polarity converters, as well as
other power control applications. The SG3524 is designed for
commercial applications of 0°C to +70°C.
Features
• Complete PWM power control circuitry
• Single ended or push-pull outputs
• Line and load regulation of 0.2%
• 1% maximum temperature variation
• Total supply current is less than 10mA
• Operation beyond 100kHz
This monolithic integrated circuit contains all the control circuitry
for a regulating power supply inverter or switching regulator.
Included in a 16-pin dual-in-line package is the voltage reference,
error amplifier, oscillator, pulse-width modulator, pulse steering
flip-flop, dual alternating output switches and current-limiting and
shut-down circuitry. This device can be used for switching regulators
of either polarity, transformer-coupled DC-to-DC converters,
transformerless voltage doublers and polarity converters, as well as
other power control applications. The SG3524 is designed for
commercial applications of 0°C to +70°C.
Features
• Complete PWM power control circuitry
• Single ended or push-pull outputs
• Line and load regulation of 0.2%
• 1% maximum temperature variation
• Total supply current is less than 10mA
• Operation beyond 100kHz
• Supply Voltage : 8V - 40V
• Output Current : 0,1A
Package : DIP-16
