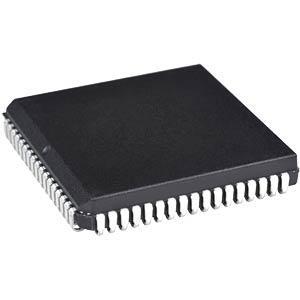

SAB80C535-N PLCC68

● 8 K × 8 ROM (SAB 80C515 only) ● Boolean processor ● 256 × 8 RAM ● Most instructions execute in 1 µs (750 ns) ● Six 8-bit I/O ports, one input port for ● 4 µs (3 µs) multiply and divide digital or analog input ● External memory expandable up to ● Three 16-bit timer/counters 128 Kbytes ● Highly flexible reload, capture, compare ● Backwardly compatible with SAB 8051 capabilities ● Functionally compatible with SAB 80515 ● Full-duplex serial channel ● Idle and power-down mode ● Twelve interrupt vectors, four priority ● Plastic leaded chip carrier package: levels P-LCC-68 ● 8-bit A/D converter with 8 multiplexed ● Plastic Metric Quad Flat Package inputs and programmable internal P-MQFP-80 reference voltages ● Two temperature ranges available: ● 16-bit watchdog timer 0 to 70 ˚C (for 12, 16, 20 MHz) – 40 to 85 ˚C (for 12, 16 MHz)
