REF01 ( REF01CP )
104,95 TL
REF01 +10V Precision Voltage Reference
Description
The REF-01 precision voltage reference provides a stable +10V
output which can be adjusted over a ±3% range with minimal
effect on temperature stability.Applications include D/A and
A/D converters, portable instrumentation, and digital voltmeters.
Key Specification
• Vout 10
• Initial Accuracy (%) 0.3
• Ref Out TC (ppm/C) 3ppm/C
• Supply Voltage Range (V) +12 to +40
• Supply Current (max) 1.4mA
• Ref Output Current (mA) 10mA
• 0.1-10 Hz Noise (µV p-p) 30µV p-p
• Temp Range(s) -40 to +85, -55 to +125
• Reference Type Series
Features
• 10 V Output, ±0.3% Max
• Adjustment Range, ±3% Min
• Excellent Temperature Stability, 8.5 ppm/°C Max
• Low Noise, 30 µV p-p Max
• Low Supply Current 1.4 mA Max
• Wide Input Voltage Range, 12 V to 40 V
• High Load Driving Capability, 10 mA
• No External Components
• Short Circuit Proof

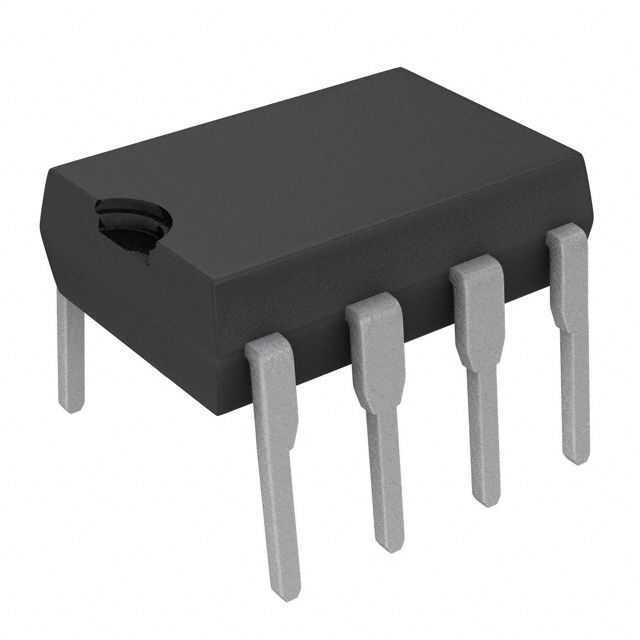

• Package : DIP8
The REF-01 precision voltage reference provides a stable +10V
output which can be adjusted over a ±3% range with minimal
effect on temperature stability.Applications include D/A and
A/D converters, portable instrumentation, and digital voltmeters.
Key Specification
• Vout 10
• Initial Accuracy (%) 0.3
• Ref Out TC (ppm/C) 3ppm/C
• Supply Voltage Range (V) +12 to +40
• Supply Current (max) 1.4mA
• Ref Output Current (mA) 10mA
• 0.1-10 Hz Noise (µV p-p) 30µV p-p
• Temp Range(s) -40 to +85, -55 to +125
• Reference Type Series
Features
• 10 V Output, ±0.3% Max
• Adjustment Range, ±3% Min
• Excellent Temperature Stability, 8.5 ppm/°C Max
• Low Noise, 30 µV p-p Max
• Low Supply Current 1.4 mA Max
• Wide Input Voltage Range, 12 V to 40 V
• High Load Driving Capability, 10 mA
• No External Components
• Short Circuit Proof
• Package : DIP8
