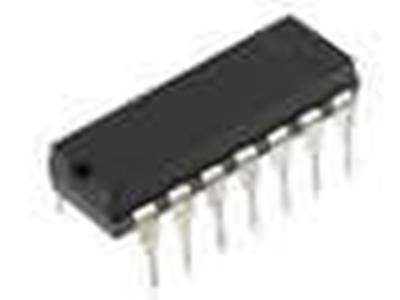

RC4136 ( RC4136N RoHS )
(0) Yorum - 0 Puan
Kategori
Dorukan Stok No
DRK-1054
Fiyat
2,75 USD + KDV
Havale
110,47 TL
(%3,00 havale indirimi)
113,89 TL
Quad General Purpose Operational Amplifier
The RC4136 is quad general-purpose operational amplifiers,
with each amplifier electrically similar to the uA741, except
that offset null capability is not provided.
The high common-mode input voltage range and the absence
of latch-up make these amplifiers ideal for voltage-follower
applications. The devices are short-circuit protected and the
internal frequency compensation ensures stability without
external components.
Features
Continuous Short-Circuit Protection
Wide Common-Mode and Differential Voltage Ranges
No Frequency Compensation Required
Low Power Consumption
No Latch-Up
Unity-Gain Bandwidth ...3 MHz Typ
Gain and Phase Match Between Amplifiers
Designed To Be Interchangeable With Raytheon RC4136
Low Noise . . . 8 nV√Hz Typ at 1 kHz
Operating Temp : 0°C to 70°C
Supply Voltage : ±18 V
Package : DIP14
with each amplifier electrically similar to the uA741, except
that offset null capability is not provided.
The high common-mode input voltage range and the absence
of latch-up make these amplifiers ideal for voltage-follower
applications. The devices are short-circuit protected and the
internal frequency compensation ensures stability without
external components.
Features
Continuous Short-Circuit Protection
Wide Common-Mode and Differential Voltage Ranges
No Frequency Compensation Required
Low Power Consumption
No Latch-Up
Unity-Gain Bandwidth ...3 MHz Typ
Gain and Phase Match Between Amplifiers
Designed To Be Interchangeable With Raytheon RC4136
Low Noise . . . 8 nV√Hz Typ at 1 kHz
Operating Temp : 0°C to 70°C
Supply Voltage : ±18 V
Package : DIP14
