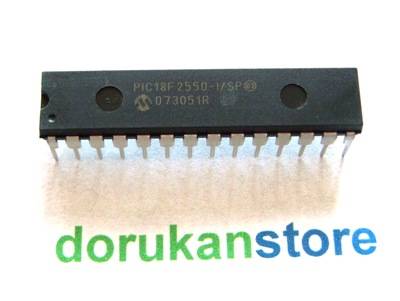

PIC18F2550-I/SP RoHS
(0) Yorum - 0 Puan
Kategori
Dorukan Stok No
DRK-1500+BARTER
Fiyat
12,75 USD + KDV
Havale
509,96 TL
(%3,00 havale indirimi)
525,73 TL
High-Performance,Enhanced Flash, USB Microcontrollers with nanoWatt Technology
Universal Serial Bus Features:
• USB V2.0 Compliant
• Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s)
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• Supports up to 32 Endpoints (16 bidirectional)
• 1-Kbyte Dual Access RAM for USB
• On-Chip USB Transceiver with On-Chip Voltage Regulator
• Interface for Off-Chip USB Transceiver
Power-Managed Modes:
• Run: CPU on, peripherals on
• Idle: CPU off, peripherals on
• Sleep: CPU off, peripherals off
• Idle mode currents down to 5.8
μA typical
• Sleep mode currents down to 0.1 μA typical
• Timer1 Oscillator: 1.1 μA typical, 32 kHz, 2V
• Watchdog Timer: 2.1 μA typical
• Two-Speed Oscillator Start-up
Flexible Oscillator Structure:
• Four Crystal modes, including High Precision PLLfor USB
• Two External Clock modes, up to 48 MHz
• Internal Oscillator Block:
- 8 user-selectable frequencies, from 31 kHz to 8 MHz
- User-tunable to compensate for frequency drift
• Secondary Oscillator using Timer1 @ 32 kHz
• Dual Oscillator options allow microcontroller and USB module to run at different clock speeds
• Fail-Safe Clock Monitor:
- Allows for safe shutdown if any clock stops
Program Memory :
Flash (bytes) : 32K
Single-Word Instructions: 16384
Data Memory
:
SRAM (bytes) : 2048
EEPROM(bytes): 256
I/O : 24
10-Bit A/D (ch) : 10
Timers 8/16-Bit :1/3
Package : SDIP-28
