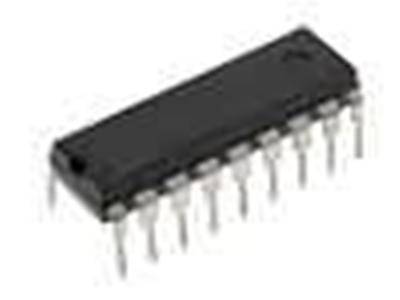

PIC16F88-I/P RoHS

     • Power-Managed modes:

     - Primary Run: RC oscillator, 76 μA, 1 MHz, 2V

     - RC_RUN: 7 μA, 31.25 kHz, 2V

     - SEC_RUN: 9 μA, 32 kHz, 2V

     - Sleep: 0.1 μA, 2V

    • Timer1 Oscillator: 1.8 μA, 32 kHz, 2V

    • Watchdog Timer: 2.2 μA, 2V

    • Two-Speed Oscillator Start-up

   Oscillators:

    • Three Crystal modes:

     - LP, XT, HS: up to 20 MHz

    • Two External RC modes

    • One External Clock mode:

     - ECIO: up to 20 MHz

    • Internal oscillator block:

     - 8 user selectable frequencies: 31 kHz,125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz,4 MHz,8MHz

   Peripheral Features:

    • Capture, Compare, PWM (CCP) module:

     - Capture is 16-bit, max. resolution is 12.5 ns

     - Compare is 16-bit, max. resolution is 200 ns

     - PWM max. resolution is 10-bit

    • 10-bit, 7-channel Analog-to-Digital Converter

    • Synchronous Serial Port (SSP) with SPI™(Master/Slave) and I2C™ (Slave)

    • Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART/SCI) with 9-  bit address detection:

     - RS-232 operation using internal oscillator (no external crystal required)

    • Dual Analog Comparator module:

     - Programmable on-chip voltage reference

     - Programmable input multiplexing from device inputs and internal voltage reference

     - Comparator outputs are externally accessible
