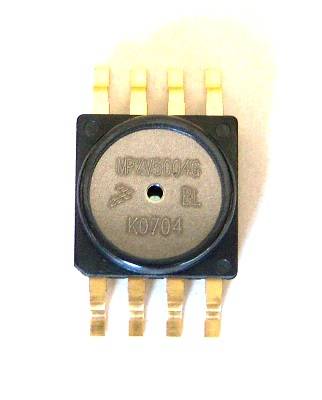

MPXV5004G6U
661,72 TL
Kategori
Marka
Dorukan Stok No
DRK-2181-1
Fiyat
15,00 EUR + KDV
Havale
641,86 TL
(%3,00 havale indirimi)
Integrated Silicon Pressure Sensor
On-Chip Signal Conditioned,
Temperature Compensated and Calibrated
On-Chip Signal Conditioned,
Temperature Compensated and Calibrated
The MPXV5004G series piezoresistive transducer is
a state-of-the-art monolithic silicon pressure sensor
designed for a wide range of applications, but particularly
those employing a microcontroller or microprocessor with
A/D inputs.
This sensor combines a highly sensitive implanted strain
gauge with advanced micromachining techniques, thin-film
metallization, and bipolar processing to provide an accurate,
high level analog output signal that is proportional to the
applied pressure.
Typical Application
Washing Machine Water Level
Ideally Suited for Microprocessor or
Microcontroller-Based Systems
0 to 3.92 kPA (0 to 400 mm H2O)
1.0 TO 4.9 V Output
Temperature Compensated Over 10°C to 60°C
Sensitivity V/P : 1 V/kPa
9.8 mV/mm H2O
Supply Voltage : 5V
Supply Current : 10mA max.
Gauge Port Case 482A-01 ( Surface Mount )
a state-of-the-art monolithic silicon pressure sensor
designed for a wide range of applications, but particularly
those employing a microcontroller or microprocessor with
A/D inputs.
This sensor combines a highly sensitive implanted strain
gauge with advanced micromachining techniques, thin-film
metallization, and bipolar processing to provide an accurate,
high level analog output signal that is proportional to the
applied pressure.
Typical Application
Washing Machine Water Level
Ideally Suited for Microprocessor or
Microcontroller-Based Systems
0 to 3.92 kPA (0 to 400 mm H2O)
1.0 TO 4.9 V Output
Temperature Compensated Over 10°C to 60°C
Sensitivity V/P : 1 V/kPa
9.8 mV/mm H2O
Supply Voltage : 5V
Supply Current : 10mA max.
Gauge Port Case 482A-01 ( Surface Mount )
