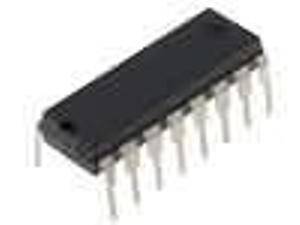

MCP3208-CI/P RoHS
139,10 TL
Kategori
Marka
Dorukan Stok No
DRK-2189-40
Fiyat
3,30 USD + KDV
Havale
134,92 TL
(%3,00 havale indirimi)
2.7V 8-Channel 12-Bit A/D Converters with SPI™ Serial Interface
• 12-bit resolution
• ± 1 LSB max DNL
• ± 2 LSB max INL
• 8 input channels
• Analog inputs programmable as single-ended orpseudo-differential pairs
• On-chip sample and hold
• SPI serial interface (modes 0,0 and 1,1)
• Single supply operation: 2.7V - 5.5V
• 100 ksps max. sampling rate at VDD = 5V
• 50 ksps max. sampling rate at VDD = 2.7V
• Low power CMOS technology:
- 500 nA typical standby current, 2 μA max.
- 400 μA max. active current at 5V
• Industrial temp range: -40°C to +85°C
• Package : DIP-16
