MC14C88 ( DS14C88N )
83,96 TL
Kategori
Marka
Dorukan Stok No
DRK-1500-6
Fiyat
2,00 USD + KDV
Havale
81,44 TL
(%3,00 havale indirimi)
DS14C88 - Quad CMOS Line Driver
• Meets EIA-232D and CCITT V.28 standards
• LOW power consumption
• Wide power supply range: ±5V to ±12V
• Available in SOIC package
• LOW power consumption
• Wide power supply range: ±5V to ±12V
• Available in SOIC package
Description
The DS14C88, pin-for-pin compatible to the DS1488/MC1488,
is a quad line drivers designed to interface data terminal
equipment (DTE) with data circuit-terminating equipment (DCE).
This device translates standard TTL/CMOS logic levels to levels
conforming to EIA-232-D and CCITT V.28 standards.
The device is fabricated in low threshold CMOS metal gate technology.
The device provides very low power consumption compared to its bipolar
equivalents: 500 µA (DS14C88) versus 25 mA (DS1488).
The DS14C88 simplifies designs by eliminating the need for external
slew rate control capacitors. Slew rate control in accordance with
The DS14C88, pin-for-pin compatible to the DS1488/MC1488,
is a quad line drivers designed to interface data terminal
equipment (DTE) with data circuit-terminating equipment (DCE).
This device translates standard TTL/CMOS logic levels to levels
conforming to EIA-232-D and CCITT V.28 standards.
The device is fabricated in low threshold CMOS metal gate technology.
The device provides very low power consumption compared to its bipolar
equivalents: 500 µA (DS14C88) versus 25 mA (DS1488).
The DS14C88 simplifies designs by eliminating the need for external
slew rate control capacitors. Slew rate control in accordance with
EIA-232D is provided on-chip, eliminating the output capacitors.

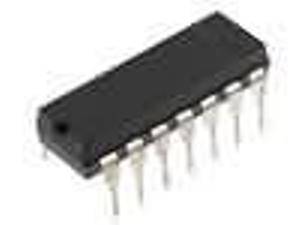

Package : DIP14
