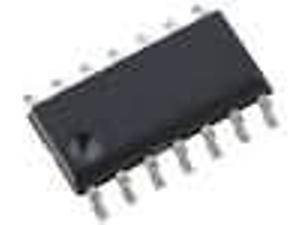

MC1489-SMD ( SN75189AD RoHS )
8,76 TL
Kategori
Marka
Dorukan Stok No
DRK-1215-1
Fiyat
0,20 EUR + KDV
Havale
8,49 TL
(%3,00 havale indirimi)
RS232C Quad Line Receiver
• Input Resistance...3 kΩ to 7 kΩ
• Input Signal Range...±30 V
• Operate From Single 5-V Supply
• Built-In Input Hysteresis (Double Thresholds)
• Response Control that Provides:
• Input Threshold Shifting
• Input Noise Filtering
• Meet or Exceed the Requirements of
TIA/EIA-232-F and ITU Recommendation V.28
• Fully Interchangeable With MotorolaTM MC1489
• Input Signal Range...±30 V
• Operate From Single 5-V Supply
• Built-In Input Hysteresis (Double Thresholds)
• Response Control that Provides:
• Input Threshold Shifting
• Input Noise Filtering
• Meet or Exceed the Requirements of
TIA/EIA-232-F and ITU Recommendation V.28
• Fully Interchangeable With MotorolaTM MC1489
and MC1489A
Description
These devices are monolithic low-power Schottky quadruple
line receivers designed to satisfy the requirements of the
standard interface between data-terminal equipment and
data-communication equipment as defined by TIA/EIA-232-F.
A separate response-control (CONT) terminal is provided for
each receiver. A resistor or a resistor and bias-voltage source
can be connected between this terminal and ground to shift
the input threshold levels. An external capacitor can be
connected between this terminal and ground to provide input
noise filtering.
The SN75189 is characterized for operation from
0°C to 70°C
Package : SO14
These devices are monolithic low-power Schottky quadruple
line receivers designed to satisfy the requirements of the
standard interface between data-terminal equipment and
data-communication equipment as defined by TIA/EIA-232-F.
A separate response-control (CONT) terminal is provided for
each receiver. A resistor or a resistor and bias-voltage source
can be connected between this terminal and ground to shift
the input threshold levels. An external capacitor can be
connected between this terminal and ground to provide input
noise filtering.
The SN75189 is characterized for operation from
0°C to 70°C
Package : SO14
