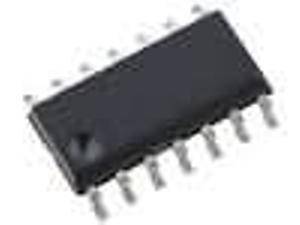

MC1488-SMD ( SN75188D )
10,54 TL
Kategori
Marka
Dorukan Stok No
DRK-1089-1
Fiyat
0,25 USD + KDV
Havale
10,22 TL
(%3,00 havale indirimi)
RS232C Quad Line Driver
• Meets or Exceeds the Requirements of
ANSI EIA/TIA-232-E and ITU Recommendation V.28
• Current-Limited Output: 10 mA Typ
• Power-Off Output Impedance: 300R Minimum
• Slew Rate Control by Load Capacitor
• Flexible Supply-Voltage Range
• Input Compatible With Most TTL Circuits
ANSI EIA/TIA-232-E and ITU Recommendation V.28
• Current-Limited Output: 10 mA Typ
• Power-Off Output Impedance: 300R Minimum
• Slew Rate Control by Load Capacitor
• Flexible Supply-Voltage Range
• Input Compatible With Most TTL Circuits
Description
The MC1488, SN55188, and SN75188 are monolithic
quadruple line drivers designed to interface data terminal
equipment with data communications equipment in
conformance with ANSI EIA/TIA-232-E using a diode
in series with each supply-voltage terminal as shown
under typical applications.
The SN75188 is characterized for operation from
0°C to 70°C
Package : SO14
0°C to 70°C
Package : SO14
