MAX4012EUK+T
(0) Yorum - 0 Puan
269,19 TL
Low-Cost, High-Speed, Single-Supply Op Amps with Rail-to-Rail Outputs
♦ Low-Cost
♦ High Speed: 200MHz -3dB Bandwidth
30MHz 0.1dB Gain Flatness
600V/μs Slew Rate
♦ Single 3.3V/5.0V Operation
♦ Rail-to-Rail Outputs
♦ Input Common-Mode Range Extends Beyond VEE
♦ Low Differential Gain/Phase: 0.02%/0.02°
♦ Low Distortion at 5MHz:
-78dBc SFDR
-75dB Total Harmonic Distortion
♦ High-Output Drive: ±120mA

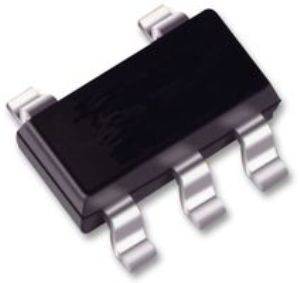

♦ Package : SOT23-5
