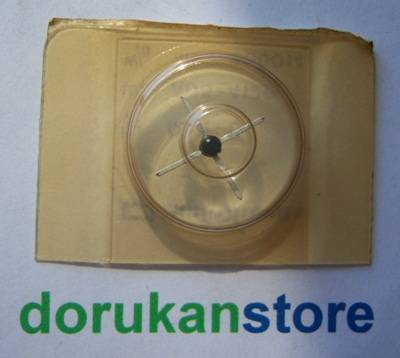

MAR-6
84,04 TL
Kategori
Marka
Dorukan Stok No
BGZBQSX3
Fiyat
2,00 USD + KDV
Havale
81,52 TL
(%3,00 havale indirimi)
DC 2GHz Monolithic MMIC Amplifier
Description
MAR-6 is a wideband amplifier offering high dynamic range.
It has repeatable performance from lot to lot. It is enclosed
in a Micro-X package. MAR-6 uses Darlington configuration
and is fabricated using silicon technology.
Expected MTBF is 2,200 years at 85°C case temperature.
MAR-6 is a wideband amplifier offering high dynamic range.
It has repeatable performance from lot to lot. It is enclosed
in a Micro-X package. MAR-6 uses Darlington configuration
and is fabricated using silicon technology.
Expected MTBF is 2,200 years at 85°C case temperature.
Features
• Wideband, DC to 2 GHz
• High gain, 22 dB typ. at 0.1 GHz
• Low noise figure, 3.0 dB typ.
• Cascadable
• Aqueous washable
• Wideband, DC to 2 GHz
• High gain, 22 dB typ. at 0.1 GHz
• Low noise figure, 3.0 dB typ.
• Cascadable
• Aqueous washable
Typical Applications
• Cellular
• PCN instrumentation
• PCN instrumentation
Absolute Parameter Ratings
Operating Temperature : -40°C to 85°C
Storage Temperature : -55°C to 100°C
Operating Current : 50mA
Power Dissipation : 200mW
Input Power : 13dBm
Recommended Device Operating Current 16 mA
Device Operating Voltage 3.5 V
Operating Temperature : -40°C to 85°C
Storage Temperature : -55°C to 100°C
Operating Current : 50mA
Power Dissipation : 200mW
Input Power : 13dBm
Recommended Device Operating Current 16 mA
Device Operating Voltage 3.5 V
Case Style: VV105
