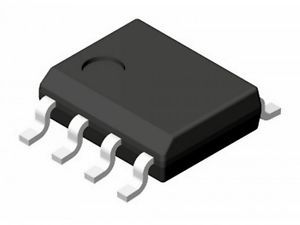

LT1485 SMD RoHS

■ ESD Protection over ±10kV ■ Low Power: ICC = 1.8mA Typ ■ 28ns Typical Driver Propagation Delays with 4ns Skew ■ Designed for RS485 or RS422 Applications ■ Single 5V Supply ■ –7V to 12V Bus Common-Mode Range Permits ±7V Ground Difference Between Devices on the Bus ■ Thermal Shutdown Protection ■ Power-Up/Down Glitch-Free Driver Outputs ■ Driver Maintains High Impedance in Three-State or with the Power Off ■ Combined Impedance of a Driver Output and Receiver Allows up to 32 Transceivers on the Bus ■ 60mV Typical Input Hysteresis ■ Pin Compatible with the SN75176A, DS75176A, and SN75LBC176



* Low Power RS485/RS422 Transceiver

* Level Translator
