LM723
17,70 TL
Kategori
Marka
Dorukan Stok No
DRK-1507
Fiyat
0,42 USD + KDV
High Precision Voltage Regulator
Description
The LM723 is a monolithic integrated
programmable voltage regulator, assembled in
14-lead dual in-line plastic package. The circuit
provides internal current limiting. When the output
current exceeds 150 mA an external NPN or PNP
pass element may be used. Provisions are made
for adjustable current limiting and remote shutdown
The LM723 is a monolithic integrated
programmable voltage regulator, assembled in
14-lead dual in-line plastic package. The circuit
provides internal current limiting. When the output
current exceeds 150 mA an external NPN or PNP
pass element may be used. Provisions are made
for adjustable current limiting and remote shutdown
Features
• Input voltage up to 40 V
• Output voltage adjustable from 2 to 37 V
• Positive or negative supply operation
• Series, shunt, switching or floating operation
• Output current to 150 mA without external pass transistor
• Adjustable current limiting
• Input voltage up to 40 V
• Output voltage adjustable from 2 to 37 V
• Positive or negative supply operation
• Series, shunt, switching or floating operation
• Output current to 150 mA without external pass transistor
• Adjustable current limiting

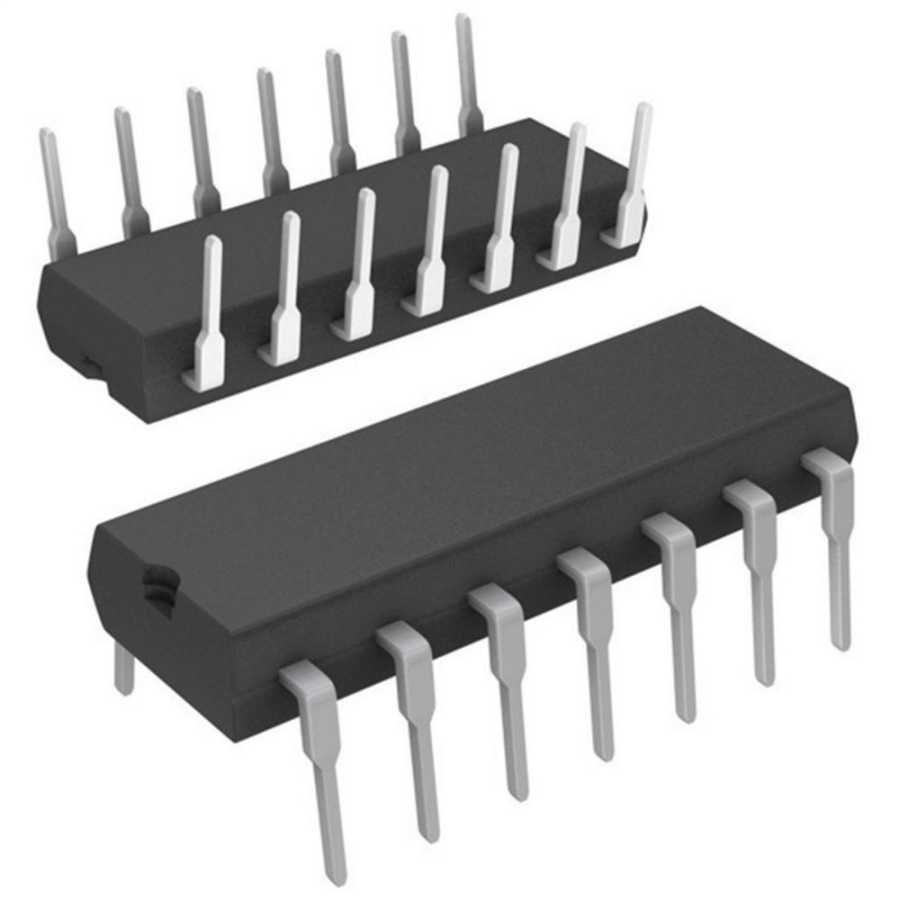

Package : DIP14
