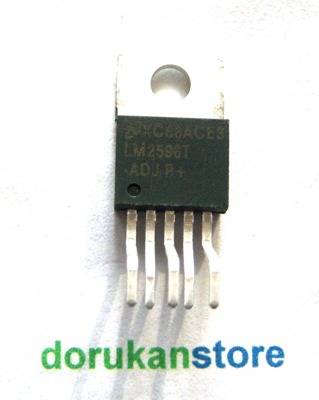

LM2596T-ADJ RoHS
151,13 TL
Marka
Dorukan Stok No
DRK-1246-16
Fiyat
3,60 USD + KDV
Havale
146,60 TL
(%3,00 havale indirimi)
SIMPLE SWITCHER Power Converter
150 KHz 3A Step-Down Voltage Regulator
Description
The LM2596 series of regulators are monolithic integrated circuits
that provide all the active functions for a step-down (buck) switching
regulator, capable of driving a 3A load with excellent line and load
regulation.The LM2596 series operates at a switching frequency of
150 kHz thus allowing smaller sized filter components than what
would be needed with lower frequency switching regulators.
Features
• 3.3V, 5V, 12V, and adjustable output versions
• Adjustable version output voltage range, 1.2V to 37V
±4% max over line and load conditions
• Available in TO-220 and TO-263 packages
• Guaranteed 3A output load current
• Input voltage range up to 40V
• Requires only 4 external components
• Excellent line and load regulation specifications
• 150 kHz fixed frequency internal oscillator
• TTL shutdown capability
• Low power standby mode, IQ typically 80 µA
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current limit protection
Applications
• Simple high-efficiency step-down (buck) regulator
• On-card switching regulators
• Positive to negative converter
Package : TO220-5L
150 KHz 3A Step-Down Voltage Regulator
Description
The LM2596 series of regulators are monolithic integrated circuits
that provide all the active functions for a step-down (buck) switching
regulator, capable of driving a 3A load with excellent line and load
regulation.The LM2596 series operates at a switching frequency of
150 kHz thus allowing smaller sized filter components than what
would be needed with lower frequency switching regulators.
Features
• 3.3V, 5V, 12V, and adjustable output versions
• Adjustable version output voltage range, 1.2V to 37V
±4% max over line and load conditions
• Available in TO-220 and TO-263 packages
• Guaranteed 3A output load current
• Input voltage range up to 40V
• Requires only 4 external components
• Excellent line and load regulation specifications
• 150 kHz fixed frequency internal oscillator
• TTL shutdown capability
• Low power standby mode, IQ typically 80 µA
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current limit protection
Applications
• Simple high-efficiency step-down (buck) regulator
• On-card switching regulators
• Positive to negative converter
Package : TO220-5L
