LM2575T-ADJ RoHS
50,38 TL
Marka
Dorukan Stok No
DRK-1177-2
Fiyat
1,20 USD + KDV
Havale
48,87 TL
(%3,00 havale indirimi)
LM2575 - SIMPLE SWITCHER 1A Step-Down Voltage Regulator
Description
The LM2575 series of regulators are monolithic integrated
circuits that provide all the active functions for a step-down
(buck) switching regulator, capable of driving a 1A load with
excellent line and load regulation.
The LM2575 series of regulators are monolithic integrated
circuits that provide all the active functions for a step-down
(buck) switching regulator, capable of driving a 1A load with
excellent line and load regulation.
Features
• Adjustable output version
• Output voltage range,
1.23V to 37V (57V for HV version) ±4% max over
line and load conditions
• Guaranteed 1A output current
• Wide input voltage range, 40V up to 60V for HV version
• Requires only 4 external components
• 52 kHz fixed frequency internal oscillator
• TTL shutdown capability, low power standby mode
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current limit protection
• P + Product Enhancement tested
• Adjustable output version
• Output voltage range,
1.23V to 37V (57V for HV version) ±4% max over
line and load conditions
• Guaranteed 1A output current
• Wide input voltage range, 40V up to 60V for HV version
• Requires only 4 external components
• 52 kHz fixed frequency internal oscillator
• TTL shutdown capability, low power standby mode
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current limit protection
• P + Product Enhancement tested
Applications
• Simple high-efficiency step-down (buck) regulator
• Efficient pre-regulator for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)
Output Current : 1000 mA
Input Min Voltage : 4 Volt
Input Max Voltage : 40 Volt
• Simple high-efficiency step-down (buck) regulator
• Efficient pre-regulator for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)
Output Current : 1000 mA
Input Min Voltage : 4 Volt
Input Max Voltage : 40 Volt
Efficiency 77, 88, 75 %

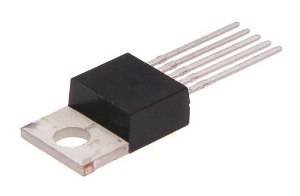

Package TO220-5
Package TO220-5
