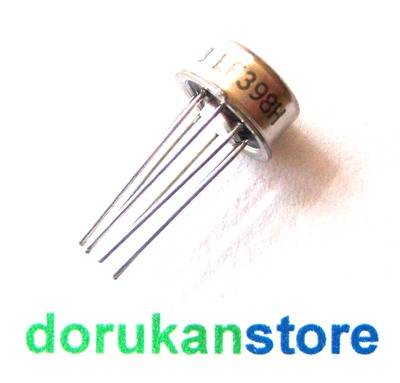

LF398 ( LF398H )
125,95 TL
Kategori
Marka
Dorukan Stok No
DRK-2319-1
Fiyat
3,00 USD + KDV
Havale
122,17 TL
(%3,00 havale indirimi)
LF398 Monolithic Sample and Hold Circuit
Description
The LF198/LF298/LF398 are monolithic sample-and-hold
circuits which utilize BI-FET technology to obtain ultra-high
dc accuracy with fast acquisition of signal and low droop rate.
Features
• Operates from ±5V to ±18V supplies
• Less than 10 µs acquisition time
• TTL, PMOS, CMOS compatible logic input
• 0.5 mV typical hold step at Ch = 0.01 µF
• Low input offset
• 0.002% gain accuracy
• Low output noise in hold mode
• Input characteristics do not change during hold mode
• High supply rejection ratio in sample or hold
• Wide bandwidth
• Space qualified, JM38510
The LF198/LF298/LF398 are monolithic sample-and-hold
circuits which utilize BI-FET technology to obtain ultra-high
dc accuracy with fast acquisition of signal and low droop rate.
Features
• Operates from ±5V to ±18V supplies
• Less than 10 µs acquisition time
• TTL, PMOS, CMOS compatible logic input
• 0.5 mV typical hold step at Ch = 0.01 µF
• Low input offset
• 0.002% gain accuracy
• Low output noise in hold mode
• Input characteristics do not change during hold mode
• High supply rejection ratio in sample or hold
• Wide bandwidth
• Space qualified, JM38510
Operating Temp : 0°C to +70°C
Package : TO99 - 8 Lead ( Metal Can Package )
Package : TO99 - 8 Lead ( Metal Can Package )
