L6474PDTR RoHS
(0) Yorum - 0 Puan
455,55 TL
ManufacturerSTMicroelectronics
SerieseasySPIN
Packaging ?Cut Tape (CT) ?
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceSPI
TechnologyDMOS
Step Resolution1 ~ 1/16
ApplicationsGeneral Purpose
Current - Output3A
Voltage - Supply3.3V, 5V
Voltage - Load8 V ~ 45 V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount

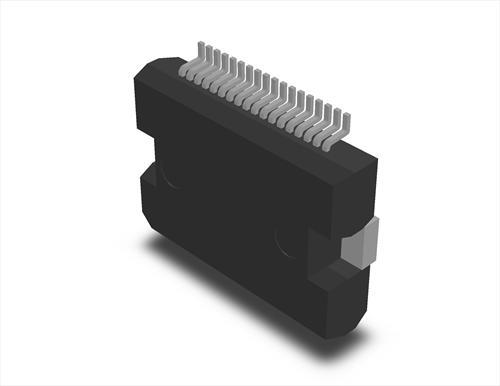

Package / Case36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device PackagePowerSO-36
Base Part NumberL6474
