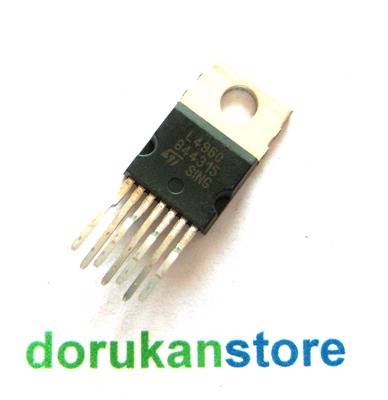

L4960
147,53 TL
Marka
Dorukan Stok No
DRK-1533
Fiyat
3,50 USD + KDV
Havale
143,10 TL
(%3,00 havale indirimi)
2.5A Power Switching Voltage Regulator
Description
The L4960 is a monolithic power switching regulator
delivering 2.5A at a voltage variable from 5V to 40V
in step down configuration.
Features of the device include current limiting, soft
start, thermal protection and 0 to 100% duty cycle
for continuous operation mode.
The L4960 is mounted in a Heptawatt plastic power
package and requires very few external components.
Efficient operation at switching frequencies up to
150KHz allows a reduction in the size and cost of
external filter components.
Features
• 2.5A OUTPUT CURRENT
• 5.1V TO 40V OPUTPUT VOLTAGE RANGE
• PRECISE (± 2%) ON-CHIP REFERENCE
• HIGH SWITCHING FREQUENCY
• VERY HIGH EFFICIENCY (UP TO 90%)
• VERY FEW EXTERNAL COMPONENTS
• SOFT START
• INTERNAL LIMITING CURRENT
• THERMAL SHUTDOWN
Description
The L4960 is a monolithic power switching regulator
delivering 2.5A at a voltage variable from 5V to 40V
in step down configuration.
Features of the device include current limiting, soft
start, thermal protection and 0 to 100% duty cycle
for continuous operation mode.
The L4960 is mounted in a Heptawatt plastic power
package and requires very few external components.
Efficient operation at switching frequencies up to
150KHz allows a reduction in the size and cost of
external filter components.
Features
• 2.5A OUTPUT CURRENT
• 5.1V TO 40V OPUTPUT VOLTAGE RANGE
• PRECISE (± 2%) ON-CHIP REFERENCE
• HIGH SWITCHING FREQUENCY
• VERY HIGH EFFICIENCY (UP TO 90%)
• VERY FEW EXTERNAL COMPONENTS
• SOFT START
• INTERNAL LIMITING CURRENT
• THERMAL SHUTDOWN
Package : Heptawatt ( 7 Lead )
