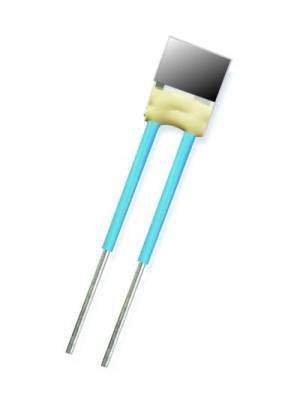

KFS330-MINI RoHS



  Capacitive Polymer Humidity Sensor




Humidity range: 0 ... 100% relative humidity
Temperature range: -40 ... +190 °C
Capacitance: 200 pF ±40 pF (at 30% r.H.)
Gain value: 0.3 pF / % r.H. (20 ... 95% r.H.)
Tan d: < 0.01
Hysteresis: < 2.0% r.H.
Response time: < 10s typ.
Frequence range: 1 ... 100 kHz
max. evaluation voltage: < 12 Vpp ~
Signal waveform: AC voltage (without DC-component)
Dimensions: 3.81 x 5.0 x 0.4 mm Connection: SIL - contacts
