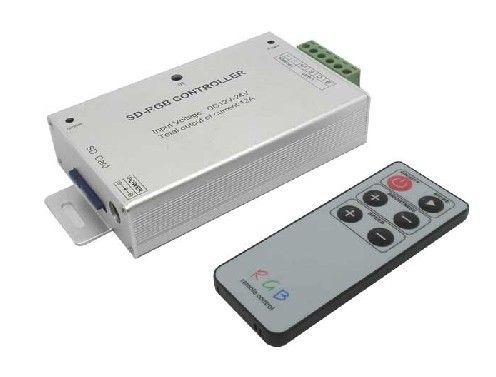

Infrared SD card RGB controller
144,00 TL
Kategori
Dorukan Stok No
DRK-RAF25-K4-3
Fiyat
120,00 TL + KDV
Havale
139,68 TL
(%3,00 havale indirimi)
Infrared SD card RGB controller using advanced computer control chip to control all the led lighting lamps and lanterns, for example: the point light source, soft light wall lamp, washing, glass curtain wall lamp, etc. Using infrared remote control, choose pattern files, adjust rate of change, pause, looping, electric storage and switch etc. Function. The system is in search of all SD card "*" file and press filename LED, read and broadcast from last save files and mode. Users can choose change pattern. After select all the files, and then press the select key file added to cycle through the pattern file. Its wiring, flexible connection is convenient, simple to use.
It can realize the jump, the gradation, the frequency, the horse race, running water and so many effect, according to the customer physical demand. User can also edit the data flies through the incidental pattern editing software（Led Editor v1.0）, kinds of change pattern , easy to use , The specific method of editing software see instructions .
● working temperature: -20-60℃
● supply voltage: DC12-24V
● maximum number of documents pattern：16
● packing size ：L160ΧW95ΧH50 mm
● external dimension :L128ΧW64ΧH24 mm
● net weight : 140g
● gross weight: 175g
● static power consumption ：<1W
● Frame frequency: 1--25 frames per second
● output current:<4A
● output: three-Channel MOS with open-drain output
●output power:12V:<144W, 24V:<288W
● supply voltage: DC12-24V
● maximum number of documents pattern：16
● packing size ：L160ΧW95ΧH50 mm
● external dimension :L128ΧW64ΧH24 mm
● net weight : 140g
● gross weight: 175g
● static power consumption ：<1W
● Frame frequency: 1--25 frames per second
● output current:<4A
● output: three-Channel MOS with open-drain output
●output power:12V:<144W, 24V:<288W
