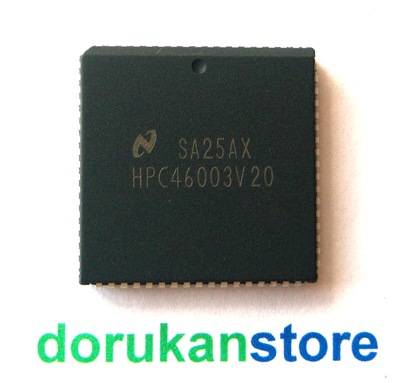

HPC46003V20 RoHS
528,60 TL
Kategori
Marka
Dorukan Stok No
DRK-1197
Fiyat
12,00 EUR + KDV
Havale
512,74 TL
(%3,00 havale indirimi)
High Performance Microcontroller
Supply Voltage Typical : 5.00 V [Nom]
Processor Size : 16-Bit
Controller Series : HPC
Core Processor : HPC
Program Memory : ROM-less
RAM Size (Bytes) : 256 B
Processor Size : 16-Bit
Controller Series : HPC
Core Processor : HPC
Program Memory : ROM-less
RAM Size (Bytes) : 256 B
Clock Frequency : 20.000 MHz
Number of I/O Pins : 52
Internal Oscillator : Yes
Number of Timers: 4 x 16 Bit
Interface(s) : Serial
Interface(s) : Microwire/Plus
Interface(s) : UART
Pulse Width Modulators (PWM) : 4
Supply Voltage : 4.50 V [Min]
Supply Voltage : 5.50 V [Max]
Operating Temperature : 0°C - 70 °C
Package : PLCC68
Number of Timers: 4 x 16 Bit
Interface(s) : Serial
Interface(s) : Microwire/Plus
Interface(s) : UART
Pulse Width Modulators (PWM) : 4
Supply Voltage : 4.50 V [Min]
Supply Voltage : 5.50 V [Max]
Operating Temperature : 0°C - 70 °C
Package : PLCC68
