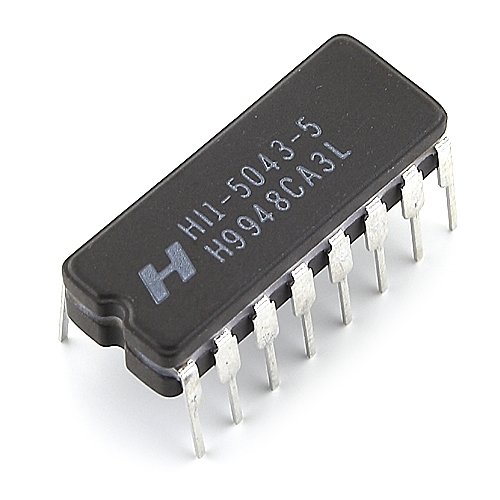

HI1-5043-5
350,23 TL
TypeTitle
DatasheetsHI-5042/43/47/49/51
EDA / CAD Models Download from Ultra Librarian
Product Attributes
TypeDescriptionSelect All
CategoriesIntegrated Circuits (ICs)
Interface - Analog Switches, Multiplexers, Demultiplexers
ManufacturerRenesas Electronics America Inc.
Series-
Packaging Tube
Part StatusObsolete
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)75 Ohm
Channel-to-Channel Matching (ΔRon)2 Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)500ns, 500ns
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))11pF, 11pF
Current - Leakage (IS(off)) (Max)2nA
Crosstalk-88dB @ 100kHz
Operating Temperature0°C ~ 75°C (TA)
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CERDIP
Base Part NumberHI-5043
