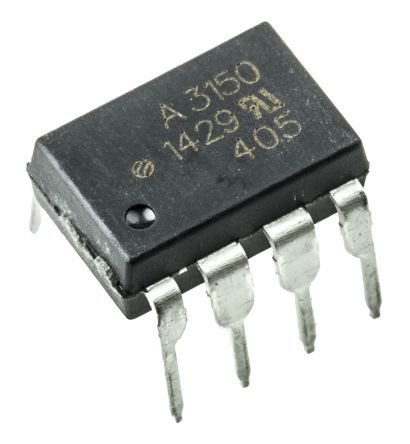

HCPL3150V RoHS
(0) Yorum - 0 Puan
Dorukan Stok No
DRK-DRK-7690-70
Fiyat
4,15 USD + KDV
171,29 TL
Manufacturer: Broadcom Limited
Product Category: Logic Output Opto-couplers
RoHS: N
Package/Case: DIP-8
Output Type: Open Collector
Number of Channels: 1 Channel
Isolation Voltage: 3750 Vrms
If - Forward Current: 16 mA
Vf - Forward Voltage: 1.5 V
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation: 295 mW
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 100 C
Series: HCPL-3150
Packaging: Tube
Height: 3.56 mm
Length: 9.9 mm
Width: 6.6 mm
Brand: Broadcom / Avago
Propagation Delay - Max: 500 ns
Fall Time: 100 ns
Product Type: Logic Output Optocouplers
Factory Pack Quantity: 50
Subcategory: Optocouplers
