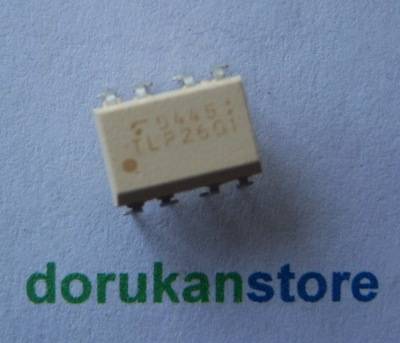

HCPL2601 (TLP2601)
41,98 TL
Marka
Dorukan Stok No
DRK-1123-1
Fiyat
1,00 USD + KDV
Havale
40,72 TL
(%3,00 havale indirimi)
High Speed DC Photocoupler GaAℓAs Ired & Photo−IC
The TLP2601 a photocoupler which combines a GaAℓAs IRed as
the emitter and an integrated high gain, high speed photodetector.
The output of the detector circuit is an open collector,
the emitter and an integrated high gain, high speed photodetector.
The output of the detector circuit is an open collector,
Schottky clamped transistor.
A Faraday shield integrated on the photodetector chip reduces the effects
of capacitive coupling between the input LED emitter and the high gain
stages of the detector. This provides an effective common mode transient
immunity of 1000V/μs.
A Faraday shield integrated on the photodetector chip reduces the effects
of capacitive coupling between the input LED emitter and the high gain
stages of the detector. This provides an effective common mode transient
immunity of 1000V/μs.
• Input current thresholds: IF = 5mA max.
• Isolation voltage: 2500Vrms min.
• Switching speed: 10MBd
• Common mode transient immunity: 1000V/μs min.
• Guaranteed performance over temp.: 0°C~70°C
• UL Recognized: UL1577, file No. E67349
• Isolation voltage: 2500Vrms min.
• Switching speed: 10MBd
• Common mode transient immunity: 1000V/μs min.
• Guaranteed performance over temp.: 0°C~70°C
• UL Recognized: UL1577, file No. E67349
Isolated Line Receiver
Simplex / Multiplex Data Transmission
Computer−Peripheral Interface
Microprocessor System Interface
Digital Isolation For A/D, D/A Conversion
Direct Replacement For HCPL−2601
Simplex / Multiplex Data Transmission
Computer−Peripheral Interface
Microprocessor System Interface
Digital Isolation For A/D, D/A Conversion
Direct Replacement For HCPL−2601
DIP8 Package
