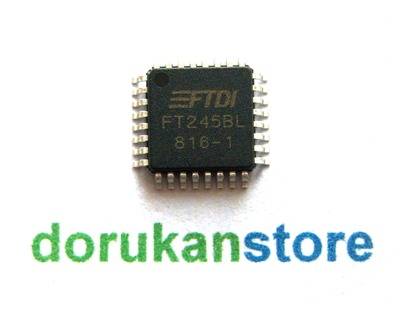

FT245BL RoHS

• Single Chip USB  Parallel FIFO bi-directional Data Transfer

•Transfer Data rate to 1M Byte / Sec - D2XX Drivers

•Transfer Data rate to 300 Kilobyte / Sec - VCP Drivers

•Simple to interface to MCU / PLD/ FPGA logic with a 4 wire handshake interface

•Entire USB protocol handled on-chip…no USB-specific firmware programming required

•FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.

•384 Byte FIFO Tx buffer / 128 Byte FIFO Rx Buffer for high data throughput.

•New Send Immediate support via SI Pin for optimised data throughput.

•Support for USB Suspend / Resume through PWREN# and WAKEUP pins.

•Support for high power USB Bus powered devices through PWREN# pin

•Adjustable RX buffer timeout

•In-built support for event characters

•Integrated level converter on FIFO and control signals for interfacing to 5V and 3.3V logic

•Integrated 3.3V regulator for USB IO

•Integrated Power-On-Reset circuit

•Integrated 6MHz – 48Mhz clock multiplier PLL

•USB Bulk or Isochronous data transfer modes

•New Bit-Bang Mode allows the data bus to be used as an 8 bit general purpose IO Port without the need for MCU or other support logic.

•4.35V to 5.25V single supply operation

•Package :LQFP-32
