Encoder with Switch with Bushing L=15mm (EC85SM15C20F)
87,56 TL
Dorukan Stok No
UWBDESM
Fiyat
2,00 EUR + KDV
Havale
84,93 TL
(%3,00 havale indirimi)

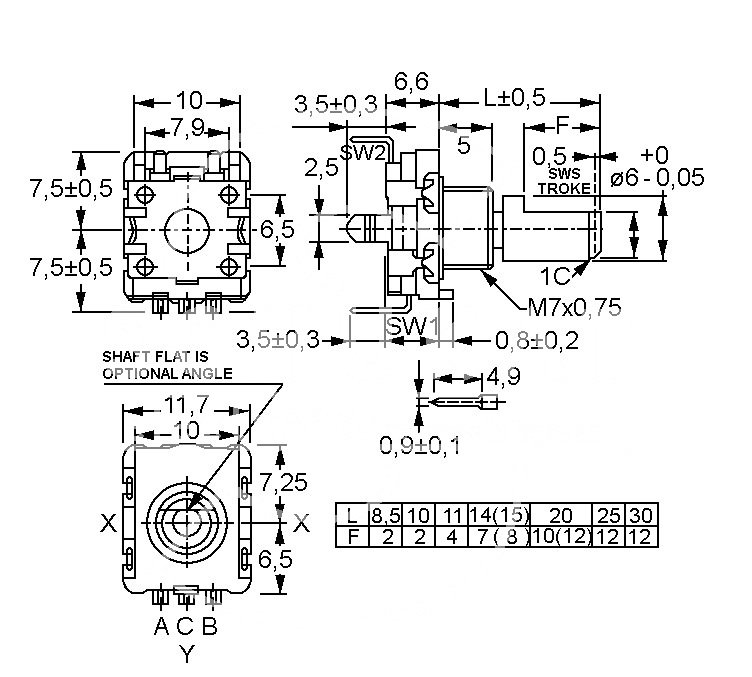

Encoder with Switch with Bushing L=15mm
| Features |
| • Compact design • Number of pulse: 20 • Mechanical angles 360° • Horizontally, for SMD mounting • Optionally with push-on switch • With thread: EC85SM_, EC85NM_ |
| Technical
Specifications |
 |
|
| Design: |
SMD |
| Input Voltage: |
5V DC |
| Input Current: |
10mA |
| Insulation Resistance (Min./1mA): |
100MW / 250V
DC |
| Spannungsfestigkeit (1min./1mA): |
300V DC |
| Rotation Torque of Detent: |
50...180gf.cm |
| Number of Detent: |
20 |
| Number of Pulse: |
20 |
| Travel of Switch: |
0,5mm |
| Rotation Angle: |
360° |
| Rotational Life: |
15x102 Cycles |
| Contact: |
NO (Push On) |
| Temperature Range: |
-20°C...+70°C |
