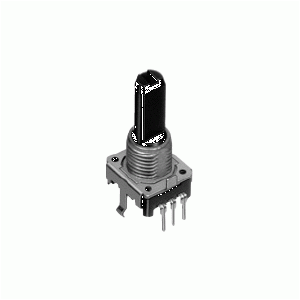

EC12E1220405
(0) Yorum - 0 Puan
Dorukan Stok No
DRK-7099-6
Fiyat
2,50 EUR + KDV
Havale
105,75 TL
(%3,00 havale indirimi)
109,02 TL
| Part number | EC12E1220405 | |
| Actuator length | 25mm | |
| Torque | Standard 3 to 20mN･m |
|
| Number of detent | 12 | |
| Number of pulse | 12 | |
| Operating direction | Vertical | |
| Operating temperature range | -10℃ to +70℃ | |
| Electrical performance | Ratings | 0.5mA 5V DC |
| Output signal | Two phase A and B | |
| Max./min. operating current(Resistive load) | 5mA/0.5mA | |
| Insulation resistance | 10MΩ min. 50V DC | |
| Voltage proof | 50V AC for 1 minute | |
| Mechanical performance | Detent torque | 3 to 20mN·m |
| Push-pull strength | 80N | |
| Durability | Operating life | 30,000 cycles |
Dimensions
Mounting Hole Dimensions
|
Output Wave
Sliding Noise
|
