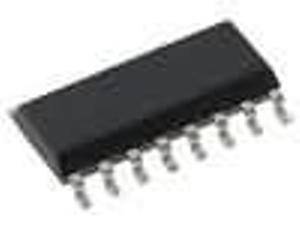

DS14C232C-SMD ( DS14C232CM )
84,04 TL
Kategori
Marka
Dorukan Stok No
DRK-1088
Fiyat
2,00 USD + KDV
Havale
81,52 TL
(%3,00 havale indirimi)
DS14C232 - Low Power +5V Powered
TIA/EIA-232 Dual Driver/Receiver
Description
The DS14C232 is a low power dual driver/receiver featuring an
onboard DC to DC converter, eliminating the need for ±12V
power supplies.The device only requires a +5V power supply.
Icc is specified at 3.0 mA maximum, making the device ideal
for battery and power conscious applications. The drivers' slew
rate is set internally and the receivers feature internal noise
filtering, eliminating the need for external slew rate and filter
capacitors. The device is designed to interface data terminal
equipment (DTE) with data circuit-terminating equipment (DCE).
The driver inputs and receiver outputs are TTL and CMOS compatible.
DS14C232C driver outputs and receiver inputs meet
TIA/EIA-232-E (RS-232) and CCITT V.28 standards.
Features
• Pin compatible with industry standard
MAX232, LT1081, ICL232 and TSC232
• Single +5V power supply
• Low power-ICC 3.0 mA maximum
• DS14C232C meets TIA/EIA-232-E (RS-232)
and CCITT V.28 standards
• CMOS technology
• Receiver Noise Filter
• Package efficiency-2 drivers and 2 receivers
• Package : SO16
The DS14C232 is a low power dual driver/receiver featuring an
onboard DC to DC converter, eliminating the need for ±12V
power supplies.The device only requires a +5V power supply.
Icc is specified at 3.0 mA maximum, making the device ideal
for battery and power conscious applications. The drivers' slew
rate is set internally and the receivers feature internal noise
filtering, eliminating the need for external slew rate and filter
capacitors. The device is designed to interface data terminal
equipment (DTE) with data circuit-terminating equipment (DCE).
The driver inputs and receiver outputs are TTL and CMOS compatible.
DS14C232C driver outputs and receiver inputs meet
TIA/EIA-232-E (RS-232) and CCITT V.28 standards.
Features
• Pin compatible with industry standard
MAX232, LT1081, ICL232 and TSC232
• Single +5V power supply
• Low power-ICC 3.0 mA maximum
• DS14C232C meets TIA/EIA-232-E (RS-232)
and CCITT V.28 standards
• CMOS technology
• Receiver Noise Filter
• Package efficiency-2 drivers and 2 receivers
• Package : SO16
