DG485DJ
1.138,05 TL
Packaging  |
Tube |
|
|---|---|---|
| Part Status | Active | |
| Switch Circuit | SPST - NO/NC | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 8 | |
| On-State Resistance (Max) | 85 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 5.1 Ohm | |
| Voltage - Supply, Single (V+) | - | |
| Voltage - Supply, Dual (V±) | ±15V | |
| Switch Time (Ton, Toff) (Max) | 200ns, 200ns | |
| -3db Bandwidth | - | |
| Charge Injection | 17pC | |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 43pF | |
| Current - Leakage (IS(off)) (Max) | 1nA | |
| Crosstalk | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

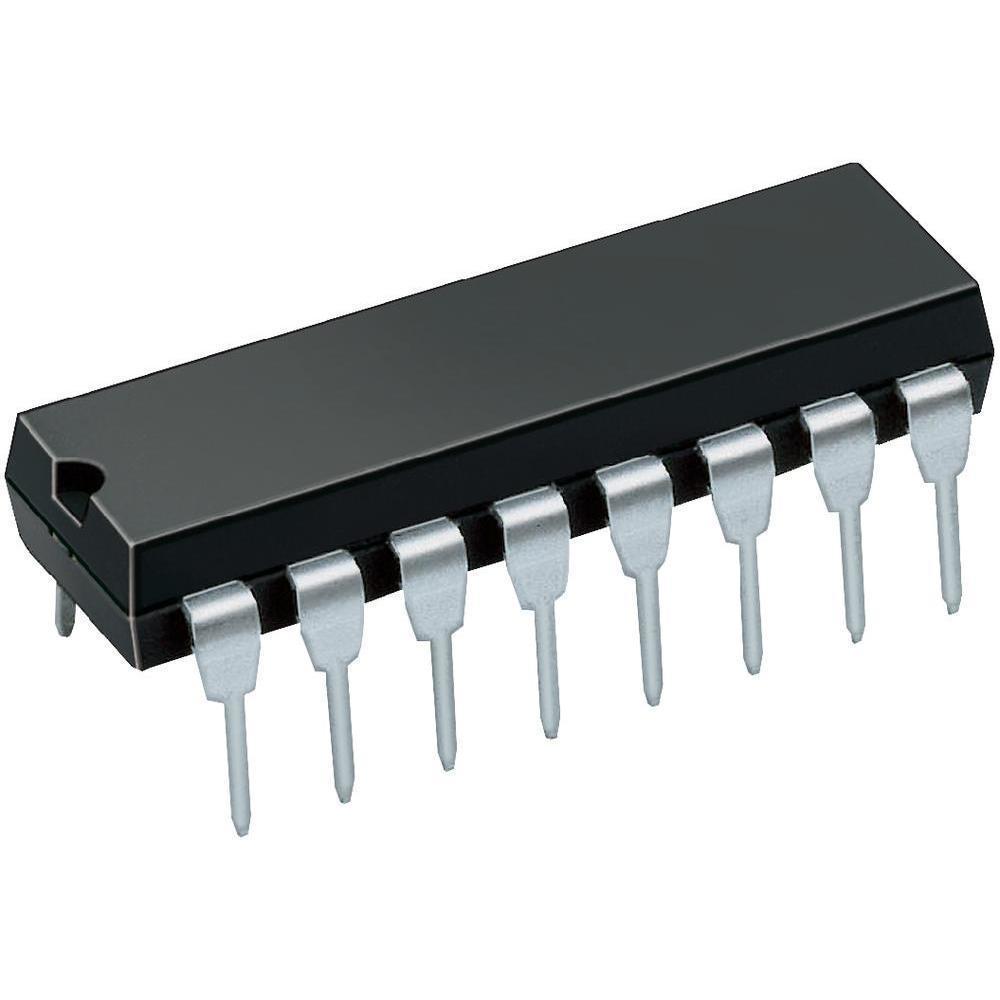

| Package / Case | 16-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 16-PDIP |
