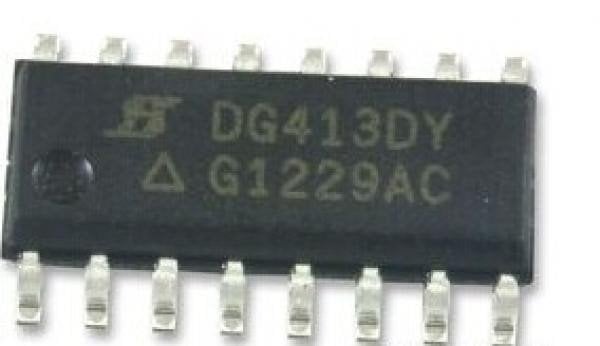

DG413DY RoHS
(0) Yorum - 0 Puan
144,46 TL
Analogue Switch ICs Quad SPST Switch
____________________________________________
____________________________________________
| Product Category: | Analogue Switch ICs | |
| Manufacturer: | Vishay | |
| RoHS: | No | |
| Number of Switches: | 4 Switch | |
| Configuration: | 4 x SPST | |
| On Resistance - Max: | 35 Ohms | |
| Switch Voltage - Max: | +/- 15 V | |
| On Time - Max: | 175 ns | |
| Off Time - Max: | 145 ns | |
| Operating Supply Voltage: | 44 V | |
| Maximum Operating Temperature: | + 85 C | |
| Mounting Style: | SMD/SMT | |
| Package/Case: | SOIC-16 | |
| Brand: | Vishay Semiconductors | |
| Dual Supply Voltage: | +/- 15 V | |
| Height: | 1.55 mm (Max) | |
| Length: | 10 mm (Max) | |
| Minimum Operating Temperature: | - 40 C | |
| Packaging: | Tube | |
| Pd - Power Dissipation: | 600 mW | |
| Series: | DG4xx | |
| Supply Current - Max: | 1 uA | |
| Supply Type: | Single Supply, Dual Supply | |
| Switch Continuous Current: | 30 mA | |
| Width: | 4 mm (Max) | |
