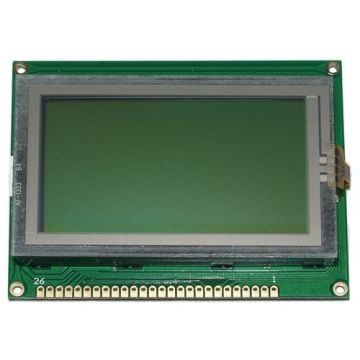

DEM128064ASYH-LYT +Touch Panel
1.064,27 TL
Marka
Dorukan Stok No
DRK-Yeni34Raf.
Fiyat
25,00 USD + KDV
Havale
1.032,34 TL
(%3,00 havale indirimi)
Technical Specifications |
• High contrast LCD-STN display • Yellow LED backlight • Suitable analog Touch Panel included • Interface for 8-Bit data bus • Supply voltage, typ. +5,0V • Operating temperature range -20...+70°C |
DEM_ | Type | Format | V-Area | LxWxD |
[HxV] | [mm] | [mm] | ||
128064ASYH_ | STN | 128x64 | 71,7x39,0 | 93x70x14,3 |
STN = Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing Area |
||||
DEM_ | P-Size | Backl | B-Colour | Tamb | ||||
[mm] | [°C] | |||||||
128064ASYH_ | 0,48x0,48 | LED | Yellow | -20...+70 | ||||
P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature
|
