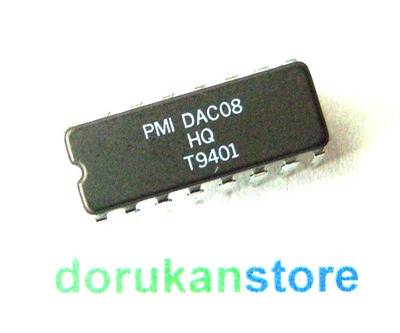

DAC08HQ
103,06 TL
Kategori
Marka
Dorukan Stok No
DRK-1133-3
Fiyat
2,40 USD + KDV
Havale
99,97 TL
(%3,00 havale indirimi)
8-Bit, High Speed, Multiplying D/A Converter
(Universal Digital Logic Interface)
(Universal Digital Logic Interface)
Description
The DAC-08 series of 8-bit monolithic digital-to-analog converters provide
very high-speed performance coupled with low cost and outstanding
applications flexibility.
The DAC-08 series of 8-bit monolithic digital-to-analog converters provide
very high-speed performance coupled with low cost and outstanding
applications flexibility.
Specifications
• Resolution (Bits) : 8bit
• DAC Update Rate : 11.8MSPS
• DAC Settling Time : 85ns
• # DAC Outputs : 1
• DAC Type : Current Out
• DAC Input Format : Parallel
• Pwr Diss (Max) : 33mW
• Resolution (Bits) : 8bit
• DAC Update Rate : 11.8MSPS
• DAC Settling Time : 85ns
• # DAC Outputs : 1
• DAC Type : Current Out
• DAC Input Format : Parallel
• Pwr Diss (Max) : 33mW
Features
• Fast Settling Output Current: 85 ns
• Full-Scale Current Prematched to ±1 LSB
• Direct Interface to TTL, CMOS, ECL, HTL, PMOS
• Nonlinearity to 0.1% Maximum over Temperature Range
• Complementary Current Outputs
• Wide Range Multiplying Capability: 1 MHz Bandwidth
• Low FS Current Drift: ±10 ppm/°C
• Wide Power Supply Range: ±4.5 V to ±18 V
• Low Power Consumption: 33 mW @ ±5 V
• Low Cost
Package : Ceramic DIP16
• Fast Settling Output Current: 85 ns
• Full-Scale Current Prematched to ±1 LSB
• Direct Interface to TTL, CMOS, ECL, HTL, PMOS
• Nonlinearity to 0.1% Maximum over Temperature Range
• Complementary Current Outputs
• Wide Range Multiplying Capability: 1 MHz Bandwidth
• Low FS Current Drift: ±10 ppm/°C
• Wide Power Supply Range: ±4.5 V to ±18 V
• Low Power Consumption: 33 mW @ ±5 V
• Low Cost
Package : Ceramic DIP16
