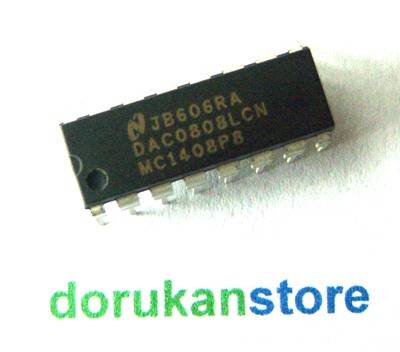

DAC0808LCN RoHS
52,52 TL
Kategori
Marka
Dorukan Stok No
BDSL6M9K
Fiyat
1,25 USD + KDV
Havale
50,95 TL
(%3,00 havale indirimi)
8-Bit D/A Converter
Description
The DAC0808 is an 8-bit monolithic digital-to-analog converter (DAC)
featuring a full scale output current settling time of 150 ns while
dissipating only 33 mW with ±5V supplies.
The DAC0808 is an 8-bit monolithic digital-to-analog converter (DAC)
featuring a full scale output current settling time of 150 ns while
dissipating only 33 mW with ±5V supplies.
Features
• Relative accuracy: ±0.19% error maximum
• Full scale current match: ±1 LSB typ
• Fast settling time: 150 ns typ
• Noninverting digital inputs are TTL and CMOS compatible
• High speed multiplying input slew rate: 8 mA/µs
• Power supply voltage range: ±4.5V to ±18V
• Low power consumption: 33 mW @ ±5V
• Direct replacement for the MC1508 / MC1408
Package : DIP16
• Relative accuracy: ±0.19% error maximum
• Full scale current match: ±1 LSB typ
• Fast settling time: 150 ns typ
• Noninverting digital inputs are TTL and CMOS compatible
• High speed multiplying input slew rate: 8 mA/µs
• Power supply voltage range: ±4.5V to ±18V
• Low power consumption: 33 mW @ ±5V
• Direct replacement for the MC1508 / MC1408
Package : DIP16
