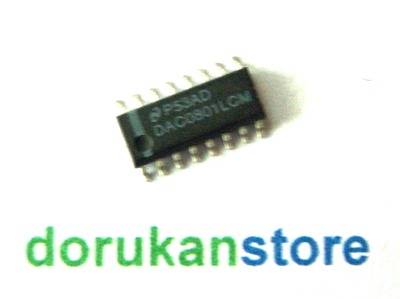

DAC0801-SMD ( DAC0801LCM )
294,13 TL
Kategori
Marka
Dorukan Stok No
DRK-2115
Fiyat
7,00 USD + KDV
Havale
285,31 TL
(%3,00 havale indirimi)
8-Bit µP Compatible A/D Converters
Description
The ADC0801, ADC0802, ADC0803, ADC0804 and ADC0805 are
CMOS 8-bit successive approximation A/D converters that use a
differential potentiometric ladder-similar to the 256R products.
The ADC0801, ADC0802, ADC0803, ADC0804 and ADC0805 are
CMOS 8-bit successive approximation A/D converters that use a
differential potentiometric ladder-similar to the 256R products.
Key Specifications
• Resolution 8 bits
• Total error ±1⁄4 LSB Adjusted
• Conversion time 100 μs
• Resolution 8 bits
• Total error ±1⁄4 LSB Adjusted
• Conversion time 100 μs
Features
• Compatible with 8080 µP derivatives-no interfacing logic needed
- access time - 135 ns
• Easy interface to all microprocessors, or operates "stand alone"
• Differential analog voltage inputs
• Logic inputs and outputs meet both MOS and TTL voltage level
specifications
• Works with 2.5V (LM336) voltage reference
• On-chip clock generator
• 0V to 5V analog input voltage range with single 5V supply
• No zero adjust required
• Operates ratiometrically or with 5 VDC, 2.5 VDC, or analog span
adjusted voltage reference
Package : SO20
• Compatible with 8080 µP derivatives-no interfacing logic needed
- access time - 135 ns
• Easy interface to all microprocessors, or operates "stand alone"
• Differential analog voltage inputs
• Logic inputs and outputs meet both MOS and TTL voltage level
specifications
• Works with 2.5V (LM336) voltage reference
• On-chip clock generator
• 0V to 5V analog input voltage range with single 5V supply
• No zero adjust required
• Operates ratiometrically or with 5 VDC, 2.5 VDC, or analog span
adjusted voltage reference
Package : SO20
