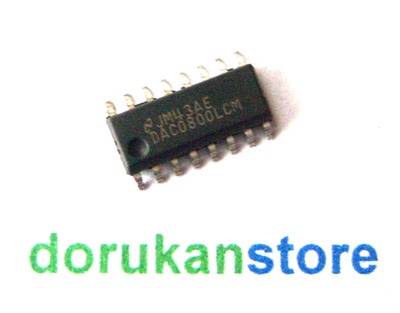

DAC0800-SMD ( DAC0800LCM )
104,95 TL
Kategori
Marka
Dorukan Stok No
DRK-1168-1
Fiyat
2,50 USD + KDV
Havale
101,81 TL
(%3,00 havale indirimi)
8Bit High Speed D/A Converter
Description
The DAC0800 series are monolithic 8-bit high-speed
current-output digital-to-analog converters (DAC) featuring
typical settling times of 100 ns.
The DAC0800 series are monolithic 8-bit high-speed
current-output digital-to-analog converters (DAC) featuring
typical settling times of 100 ns.
Features
• Parallel Interface Type
• Parallel Interface Type
• Fast settling output current: 100 ns
• Full scale error: ±1 LSB
• Nonlinearity over temperature: ±0.1%
• Full scale current drift: ±10 ppm/°C
• High output compliance: -10V to +18V
• Complementary current outputs
• Interface directly with TTL, CMOS, PMOS and others
• 2 quadrant wide range multiplying capability
• Wide power supply range: ±4.5V to ±18V
• Low power consumption: 33 mW at ±5V
• Low cost
• Full scale error: ±1 LSB
• Nonlinearity over temperature: ±0.1%
• Full scale current drift: ±10 ppm/°C
• High output compliance: -10V to +18V
• Complementary current outputs
• Interface directly with TTL, CMOS, PMOS and others
• 2 quadrant wide range multiplying capability
• Wide power supply range: ±4.5V to ±18V
• Low power consumption: 33 mW at ±5V
• Low cost
Package : SO16
