CY8C26233-24SI
126,45 TL
Kategori
Marka
Dorukan Stok No
DRK-1021-6
Fiyat
3,00 USD + KDV
Havale
122,66 TL
(%3,00 havale indirimi)
PSoC® Mixed-Signal Array MCU 8K FLASH 256B
The PSoC(TM) CY8C25122/CY8C26233/CY8C26443/CY8C26643
family of programmable system-on-chip devices replace multiple
MCU-based system components with one single-chip, configurable
device. A PSoC device includes configurable analog and digital
peripheral blocks, a fast CPU, Flash program memory, and SRAM
data memory in a range of convenient pin-outs and memory sizes.
The driving force behind this innovative programmable system-on-chip
comes from user configurability of the analog and digital arrays:
the PSoC blocks.
family of programmable system-on-chip devices replace multiple
MCU-based system components with one single-chip, configurable
device. A PSoC device includes configurable analog and digital
peripheral blocks, a fast CPU, Flash program memory, and SRAM
data memory in a range of convenient pin-outs and memory sizes.
The driving force behind this innovative programmable system-on-chip
comes from user configurability of the analog and digital arrays:
the PSoC blocks.
Programmable System-on-Chip (PSoC) Blocks
On-chip, user configurable analog and digital peripheral blocks
PSoC blocks can be used individually or in combination
12 Analog PSoC blocks provide:
-Up to 11-bit Delta-Sigma ADC
-Up to 8-bit Successive Approximation ADC
-Up to 12-bit Incremental ADC
-Up to 9-bit DAC
-Programmable gain amplifier
-Programmable filters
-Differential comparators
8 Digital PSoC blocks provide:
-Multipurpose timers: event timing, real-time clock,
pulse width modulation (PWM) and PWM with deadband
-CRC modules
-Full-duplex UARTs
-SPI™ master or slave configuration
-Flexible clocking sources for analog PSoC blocks
PSoC blocks can be used individually or in combination
12 Analog PSoC blocks provide:
-Up to 11-bit Delta-Sigma ADC
-Up to 8-bit Successive Approximation ADC
-Up to 12-bit Incremental ADC
-Up to 9-bit DAC
-Programmable gain amplifier
-Programmable filters
-Differential comparators
8 Digital PSoC blocks provide:
-Multipurpose timers: event timing, real-time clock,
pulse width modulation (PWM) and PWM with deadband
-CRC modules
-Full-duplex UARTs
-SPI™ master or slave configuration
-Flexible clocking sources for analog PSoC blocks
Operating voltage from 3.0 to 5.25 V
Operating voltage down to 1.0 V using on-chip
switch mode voltage pump
Wide temperature range: -40C to +85C

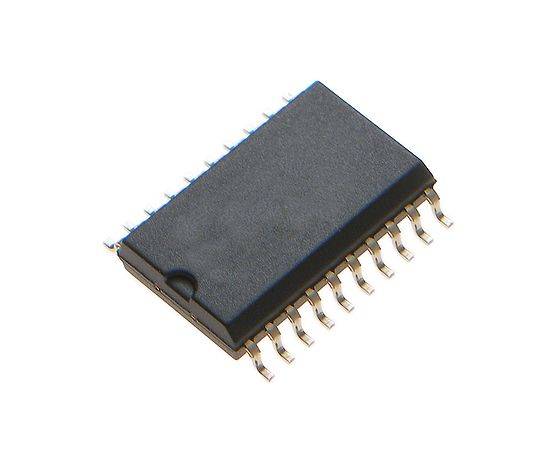

Package : SOP-20
Operating voltage down to 1.0 V using on-chip
switch mode voltage pump
Wide temperature range: -40C to +85C
Package : SOP-20
