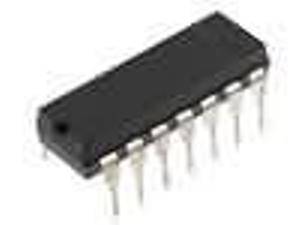

CD4541 (CD4541BE RoHS )
23,18 TL
Kategori
Marka
Dorukan Stok No
DRK-1014-8
Fiyat
0,55 USD + KDV
Havale
22,49 TL
(%3,00 havale indirimi)
Programmable Digital Timer
Programmable Timer is designed with a 16-stage binary counter,
an integrated oscillator for use with an external capacitor and
two resistors, output control logic, and a special power-on reset circuit.
Features :
an integrated oscillator for use with an external capacitor and
two resistors, output control logic, and a special power-on reset circuit.
Features :
16 STAGE BINARY COUNTER
LOW SYMMETR. OUTPUT RESISTANCE, TYPICALLY 100W at VDD = 15V
OSCILLATOR FREQUENCY RANGE : DC to 100KHz
AUTO OR MASTER RESET DISABLES
OSCILLATOR DURING RESET TO REDUCE POWER DISSIPATION
OPERATES WITH VERY SLOW CLOCK RISE AND FALL TIMES
BUILT-IN LOW-POWER RC OSCILLATOR
EXTERNAL CLOCK (applied to pin 3) CAN BE USED INSTEAD OF OSCILLATOR
OPERATES AS 2n FREQUENCY DIVIDER OR AS A SINGLE-TRANSITION TIMER
Q/Q SELECT PROVIDES OUTPUT LOGIC LEVEL FLEXIBILITY
CAPABLE OF DRIVING SIX LOW POWER TTL LOADS, THREE LOW POWER
SCHOTTKY LOADS, OR SIX HTL LOADS OVER THE RATED TEMP. RANGE
5V, 10V AND 15V PARAMETRIC RATINGS
100% TESTED FOR QUIESCENT CURRENT AT 20V
MEETS ALL REQUIREMENTS OF JEDEC JESD13B
" STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"
Wide supply voltage range—3.0V to 15V
High noise immunity—0.45 VDD (typ.)
Package : DIP14
