CD4089 ( CD4089BCN )
13,23 TL
Kategori
Marka
Dorukan Stok No
DRK-1511-1
Fiyat
0,30 EUR + KDV
Havale
12,84 TL
(%3,00 havale indirimi)
CMOS Binary Rate Multiplier
Description
CD4089BMS is a low power 4 bit digital rate multiplier that provides an output
pulse rate that is the clock-input-pulse rate multiplied by 1/16 times the binary input.
For example, when the binary input number is 13, there will be 13 output pulses
for every 16 input pulses. This device may be used in conjunction with an up/down
counter and control logic used to perform arithmetic operations (adds, subtract, divide,
raise to a power), solve algebraic and differential equations, generate natural logarithms
and trigometric functions, A/D and D/A conversions, and frequency division.
Features
• High Voltage Type (20V Rating)
• Cascadable in Multiples of 4 Bits
• Set to “15” Input and “15” Detect Output
• 100% Tested for Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Standardized Symmetrical Output Characteristics
• Maximum Input Current of 1μA at 18V Over Full Package
Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Specifications for Description of ‘B’ Series CMOS Devices”
Applications
• Numerical Control
• Instrumentation
• Digital Filtering
• Frequency Synthesis

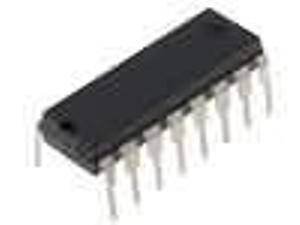

Package : DIP16
