lm348
(0) Yorum - 0 Puan
31,06 TL
Quad 2Inp OR Gate
Medium-Speed Operation - tPLH, tPHL= 60 ns (typ.) at VDD= 10 V
100% tested for quiescent current at 20 V
Maximum input current of 1 µA at 18 V over full package-temperature range;
100% tested for quiescent current at 20 V
Maximum input current of 1 µA at 18 V over full package-temperature range;
100 nA at 18 V and 25°C
Standardized, symmetrical output characteristics
Noise margin (full package-temperature range):
1 V at VDD= 5 V
2 V at VDD= 10 V
2.5 V at VDD= 15 V
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B,
Standardized, symmetrical output characteristics
Noise margin (full package-temperature range):
1 V at VDD= 5 V
2 V at VDD= 10 V
2.5 V at VDD= 15 V
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B,
"Standard Specifications for Description of ’B’ Series CMOS Devices
Operating voltage 3V to 18V
Operating Temp - 55C to +125C

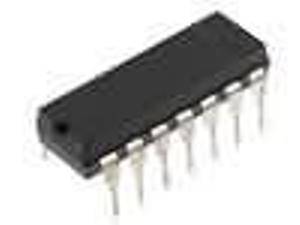

Package : DIP14
Operating voltage 3V to 18V
Operating Temp - 55C to +125C
Package : DIP14
