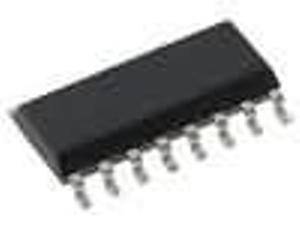

CD4051 SMD ( HCF4051B1M )
(0) Yorum - 0 Puan
Kategori
Dorukan Stok No
DRK-1122-5
Fiyat
0,42 USD + KDV
Havale
16,82 TL
(%3,00 havale indirimi)
17,34 TL
Single 8 Channel Analog Mutiplexer DemMutiplexer
LOW "ON" RESISTANCE : 125W (Typ.)
OVER 15V p.p SIGNAL-INPUT RANGE FOR VDD - VEE = 15V
HIGH "OFF" RESISTANCE : CHANNEL LEAKAGE ± 100pA (Typ.) at VDD - VEE = 18V
BINARY ADDRESS DECODING ON CHIP
HIGH DEGREE OF LINEARITY : < 0.5%
DISTORTION TYP. at fIS = 1KHz, VIS = 5 Vpp,VDD - VSS > 10V, RL = 10KW
VERY LOW QUIESCENT POWER DISSIPATION UNDER ALL DIGITAL CONTROL INPUT AND
SUPPLY CONDITIONS : 0.2mW (Typ.) at VDD - VSS = VDD - VEE =10V
MATCHED SWITCH CHARACTERISTICS : RON = 5W (Typ.) FOR VDD - VEE = 15V
WIDE RANGE OF DIGITAL AND ANALOG
SIGNAL LEVELS : DIGITAL 3 to 20, ANALOG TO 20V p.p.
QUIESCENT CURRENT SPECIFIED UP TO 20V
5V, 10V AND 15V PARAMETRIC RATINGS
INPUT LEAKAGE CURRENT I = 100nA (MAX) AT VDD = 18V TA = 25°C
100% TESTED FOR QUIESCENT CURRENT
MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS
FOR DESCRIPTION OF B SERIES CMOS DEVICES "
PACKAGE : SO16
