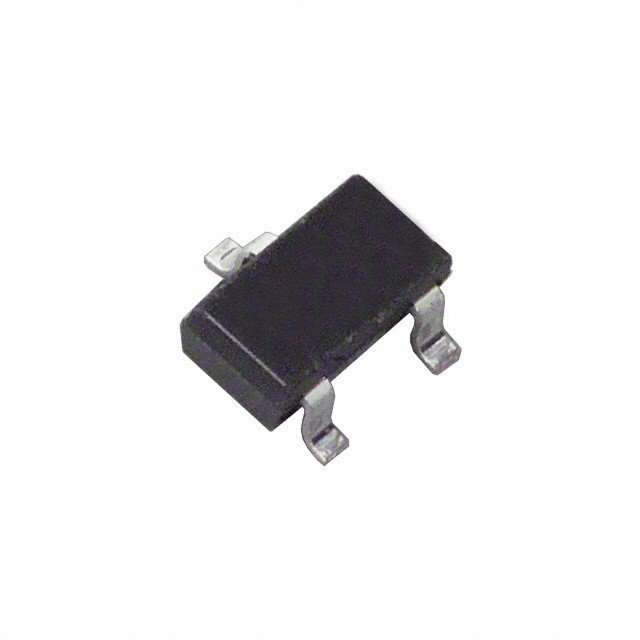

BC818-40 RoHS
0,84 TL
Manufacturer: ON Semiconductor
Product Category: Bipolar Transistors - BJT
RoHS: Details
Mounting Style: SMD/SMT
Package/Case: SOT-23-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 25 V
Collector- Base Voltage VCBO: 30 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 0.7 V
Maximum DC Collector Current: 0.5 A
Gain Bandwidth Product fT: 100 MHz
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Series: BC818
Height: 0.94 mm
Length: 2.9 mm
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Width: 1.3 mm
Brand: ON Semiconductor
Continuous Collector Current: 0.5 A
DC Collector/Base Gain hFE Min: 250
Pd - Power Dissipation: 225 mW
Product Type: BJTs - Bipolar Transistors
Qualification: AEC-Q100
Factory Pack Quantity: 3000
Subcategory: Transistors
Unit Weight: 8 mg
