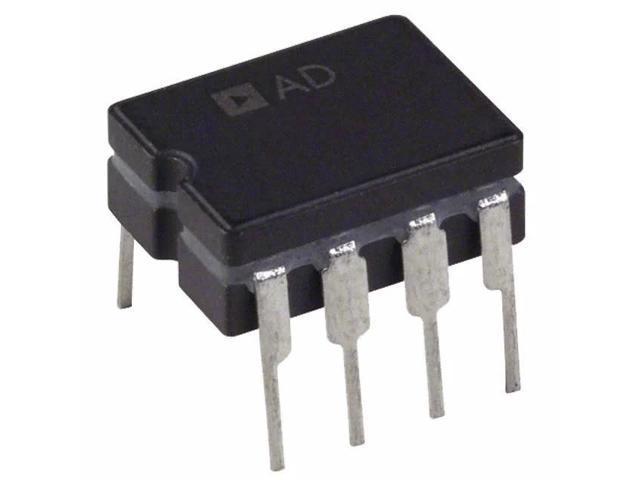

AD8031ANZ RoHS
(0) Yorum - 0 Puan
212,81 TL
Manufacturer:Analog Devices Inc.
Product Category:Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style:Through Hole
Package/Case:PDIP-8
Supply Voltage - Max:12 V
Output Current per Channel:15 mA
Number of Channels:1 Channel
GBP - Gain Bandwidth Product:50 MHz
SR - Slew Rate:30 V/us
CMRR - Common Mode Rejection Ratio:90 dB
Ib - Input Bias Current:2 uA
Vos - Input Offset Voltage:1 mV
Supply Voltage - Min:2.7 V
Operating Supply Current:900 uA
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Shutdown:No Shutdown
Series:AD8031
Packaging:Tube
Amplifier Type:Voltage Feedback Amplifier
Height:3.43 mm
Input Type:Rail to Rail
Length:9.27 mm
Output Type:Rail to Rail
Product:Operational Amplifiers
Supply Type:Single or Dual
Technology:Bipolar
Type:Voltage Feedback Amplifier
Width:7.24 mm
Brand:Analog Devices
Dual Supply Voltage:+/- 5 V
en - Input Voltage Noise Density:15 nV/sqrt Hz
In - Input Noise Current Density:5 pA/sqrt Hz
Maximum Dual Supply Voltage:+/- 6 V
Minimum Dual Supply Voltage:+/- 1.35 V
Operating Supply Voltage:2.7 V to 12 V
Pd - Power Dissipation:1300 mW
Product Type:Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio:86 dB
Factory Pack Quantity:50
Subcategory:Amplifier ICs
Voltage Gain dB:80 dB
Unit Weight:1 g
